Ubiquiti 5-Port Layer 2 Gigabit Switch With PoE Support

Overview

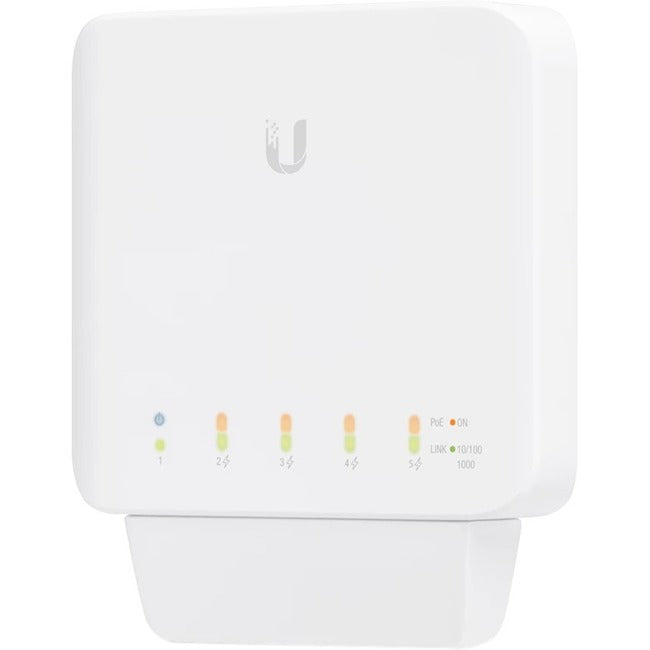

Build and expand your network with the
UniFi® Switch Flex, model USW-Flex. It is a
configurable Layer 2 Gigabit switch with
auto-sensing 802.3at PoE. Five RJ45 Gigabit
Ethernet ports provide one PoE input and
four PoE output links to your devices.

Switching Performance
The USW-Flex offers the forwarding capacity
to simultaneously process traffic on all ports
at line rate without any packet loss.

PoE Flexibility
The USW-Flex features five Gigabit RJ45
ports to deliver robust performance and
intelligent switching for your network.

Port 1 provides PoE input while ports 2-5
offer 802.3at PoE and provide up to 25W
of power for your PoE devices. Products
requiring 802.3at, such as G3 Flex cameras,
are supported.

Indoor/Outdoor Design
The USW-Flex can be installed horizontally
or vertically and offers versatile mounting
options: desktop, wall, and pole.

The weather-resistant USW-Flex can
withstand extreme temperature variations.
If the USW-Flex is installed at an exposed
location outdoors, we recommend the UniFi
Switch Flex Utility, model USW-Flex-Utility,
which is designed for use with the USW-Flex.

Outdoor Enclosure Accessory
An outdoor weatherproof enclosure, the
USW Flex Utility, is available as an optional
accessory. It includes an Ethernet patch
cable and a 60W PoE adapter, which
provides a maximum PoE budget of 46W.

Easily mounted on a pole, the USW Flex
Utility provides clean cable management
and a screw lock for security.
