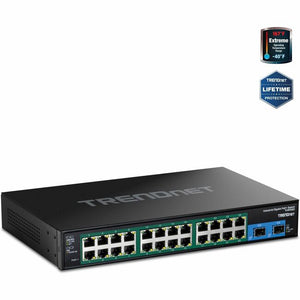

TRENDnet 26-Port Hardened Industrial Gigabit PoE+ Rackmount Switch

TRENDnet's Hardened Industrial Gigabit PoE+ Rackmount Switches each feature a rugged IP30 rated metal enclosure. These hardened PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on each hardened PoE+ switch minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Hardened Industrial Gigabit PoE+ Rackmount Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial rackmount PoE+ switch. With these hardened PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

PoE+ Power

Provides full PoE+ (30 watts) per port for devices, such as access points, cameras, access control equipment, and more.

Extreme Environments

Hardened IP30 switch, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range, functions in most environments.

bBudget Supplies up to 30W of PoE/PoE+ power per port (802.3at/802.3af) with up to a 480W PoE power budget

Network Ports

The 26-port hardened PoE+ switch features 24 x gigabit PoE+ ports, and 2 x gigabit SFP ports

Rackmount Design

With a sturdy metal housing and included rackmount brackets, this hardened PoE+ switch is wellsuited for 19" 1U rack installations

Switching Capacity

The 26-port industrial hardened PoE+ switch with fiber SFP ports features a 52Gbps switching capacity

Redundant Power

Redundant power inputs on the hardened PoE+ switch support overload current protection (power supply sold separately, models: TIS48048, TI-RSP100048)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures

This hardened 26-port rugged PoE+ switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A, and CE EN 55032 Class A standards

Certifications

Rated for information technology (ITE), and industrial equipment (EN55032/35)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-31), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point on the 26-port hardened PoE+ switch protects equipment from external electrical surges
